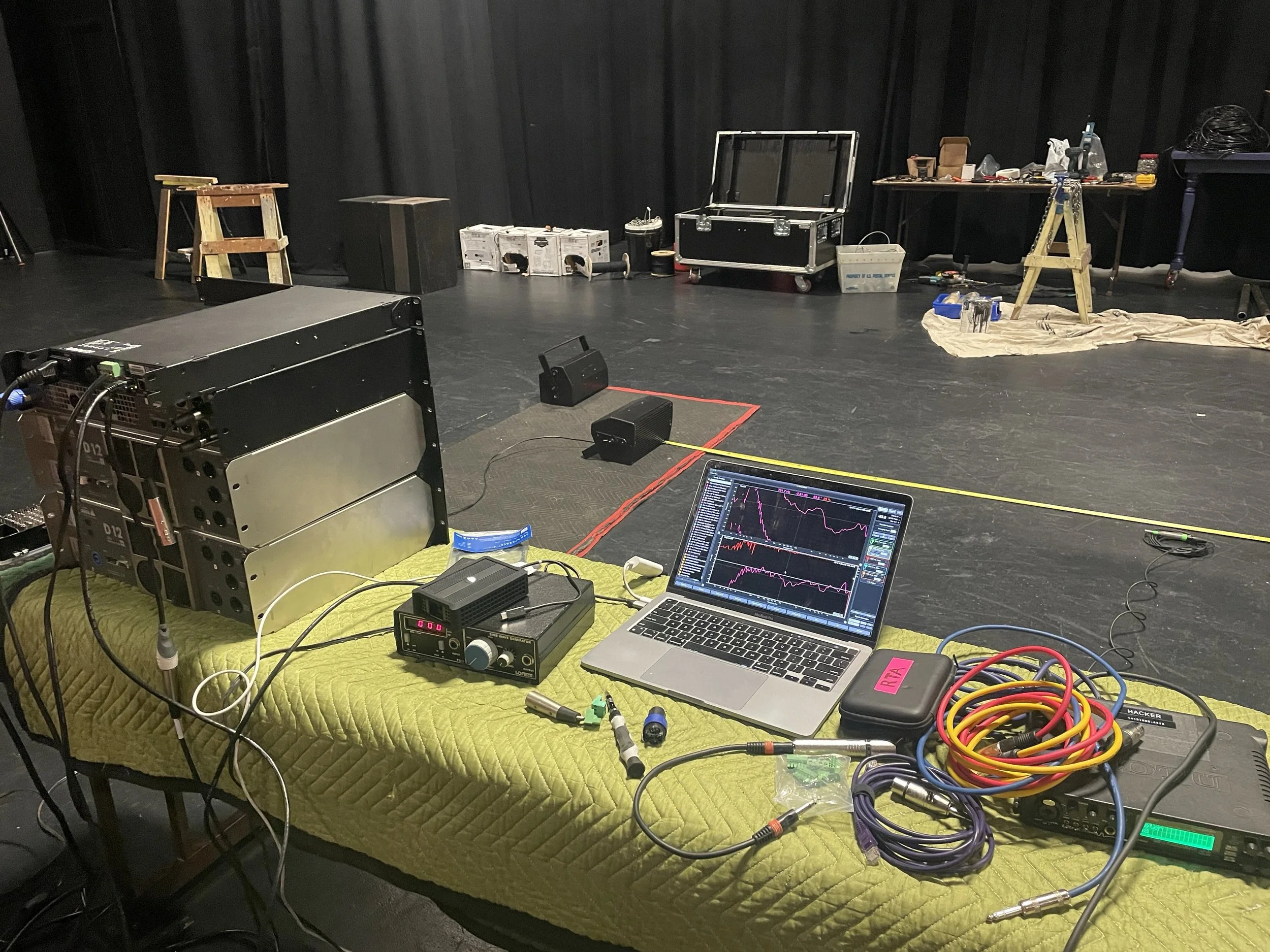

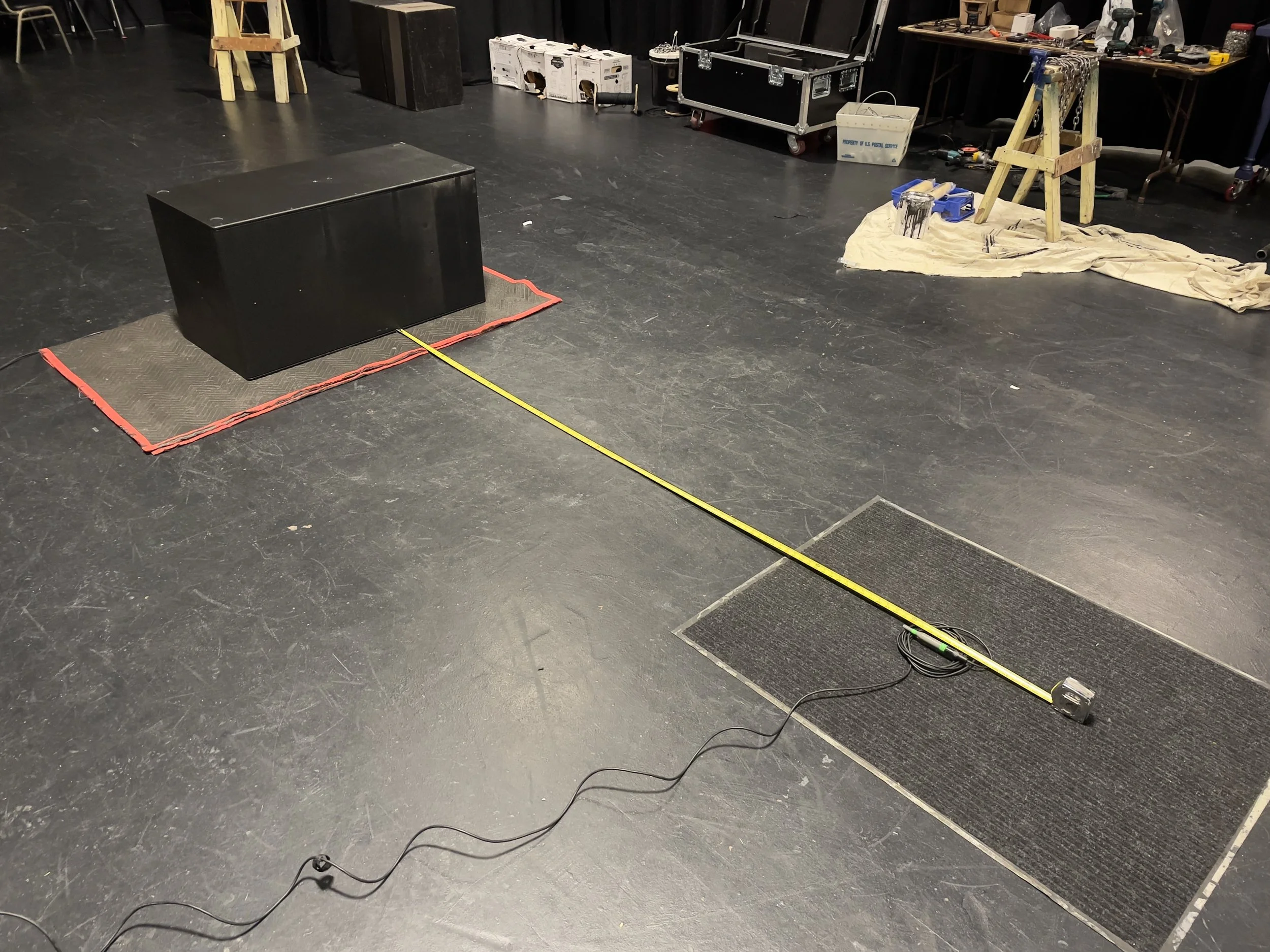

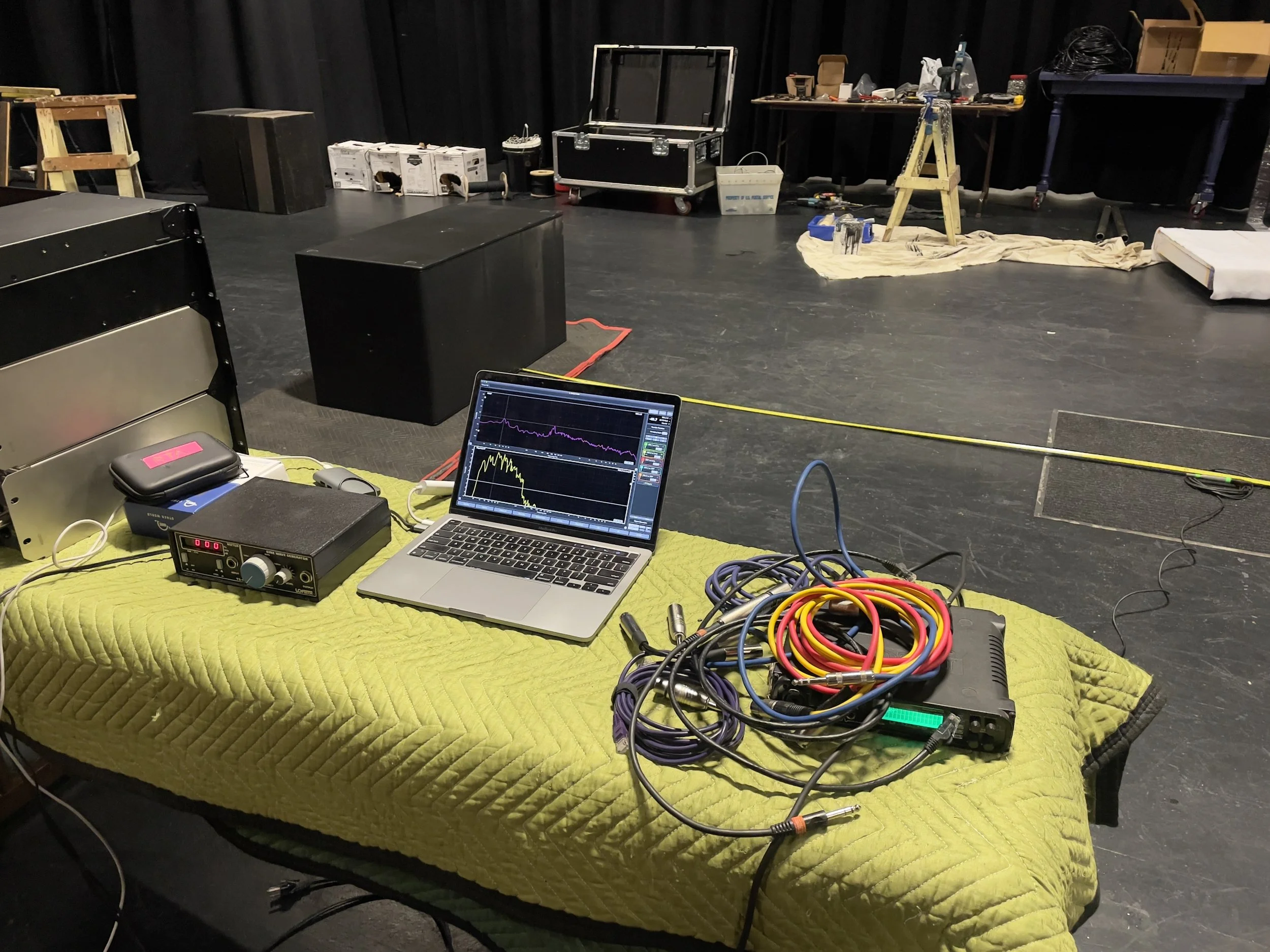

Over the course of 3 months, I designed, integrated, and optimized a d &b Audiotechnik sound system installation for the Bennington Theater in Bennington, Vermont. This project involved specing, installing, and overseeing the operation of all audio infrastructure, loudspeakers, DSP, audio networking, and intercom. The system is DSP-Based, with processing handled by an Allen and Heath AHM32 Matrix Processor and amplifier control via d & b’s R1 remote amplifier management software. Audio network ing is achieved through Dante communication between the system processor, FOH console, and various peripheral I/O devices. The system was tuned and calibrated using Rational Acoustics Smaart v9.5

I schematized audio routing for analog, digital, and networked audio systems and consulted with manufacturers and distributors to help create a comprehensive budget exceeding $50,000, trained additional theater personnel in the use-practice, and troubleshooting of venue audio systems and operated FOH and monitors for theater events.

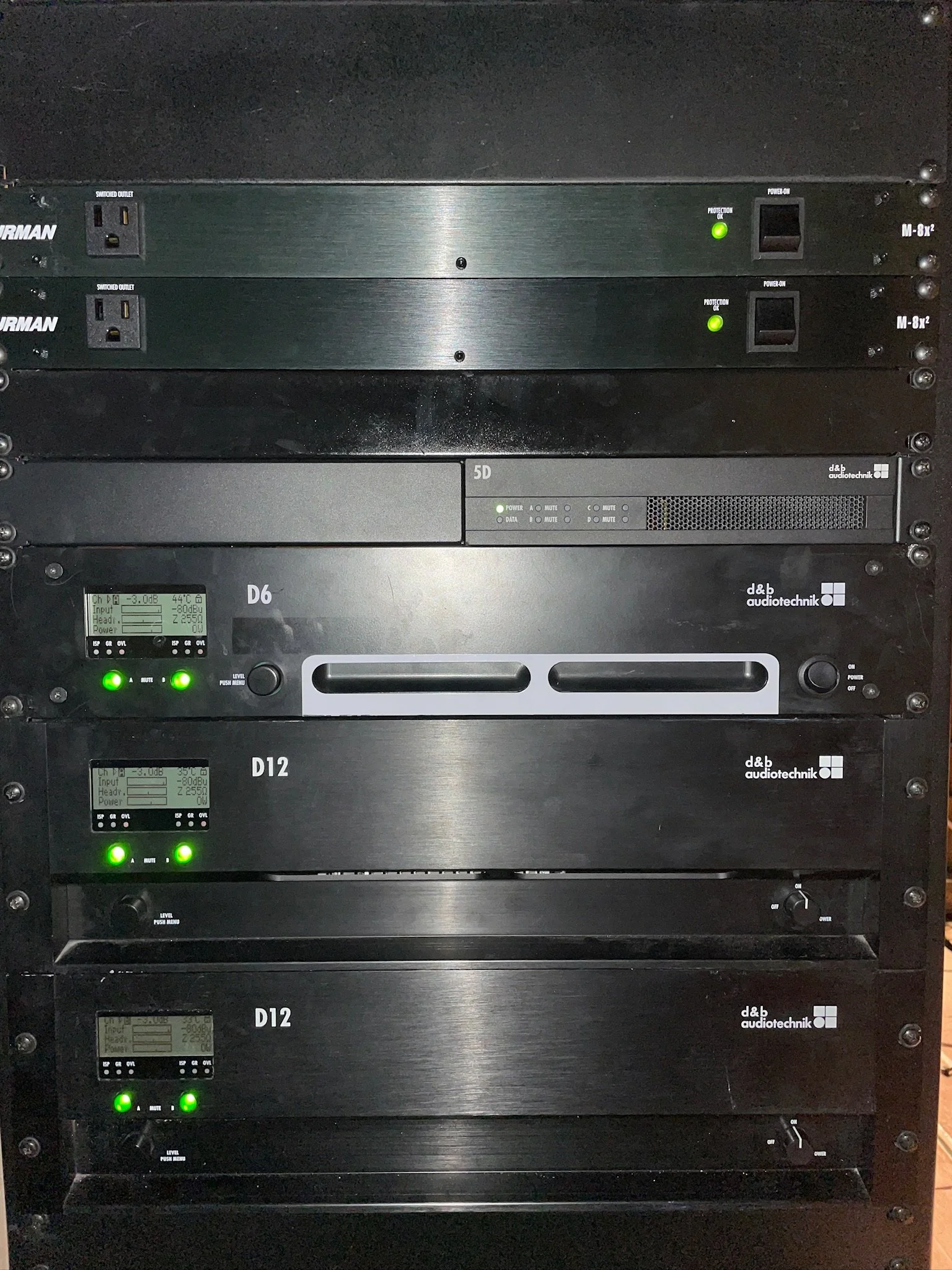

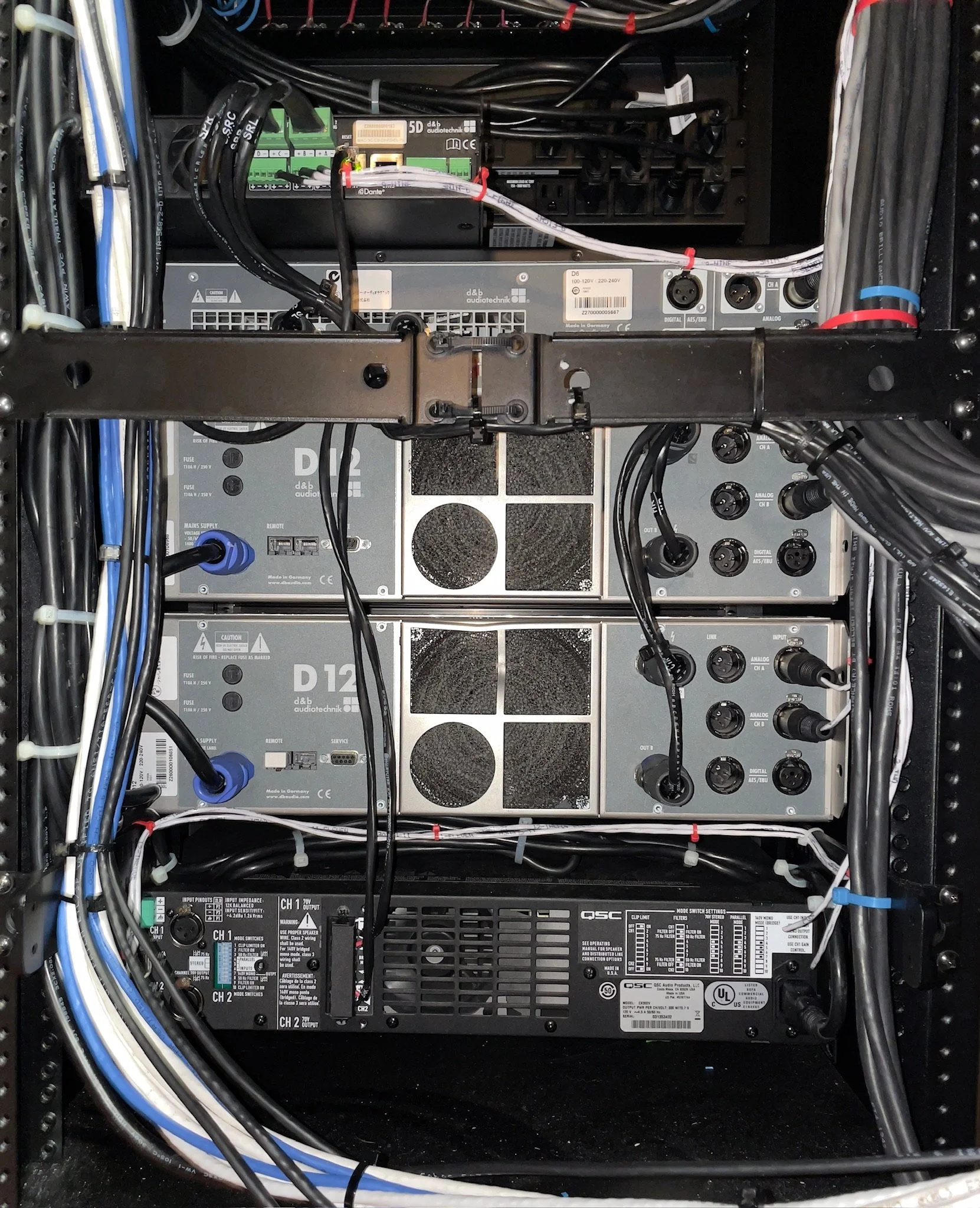

AMPLIFICATION AND PROCESSING

MAINS LR (1) - d &b Audiotechnik D12

CENTER/SUB (1) - d &b Audiotechnik D12

SIDES LR (1) - d &b Audiotechnik D6

SURROUNDS (3) - d &b Audiotechnik 5D

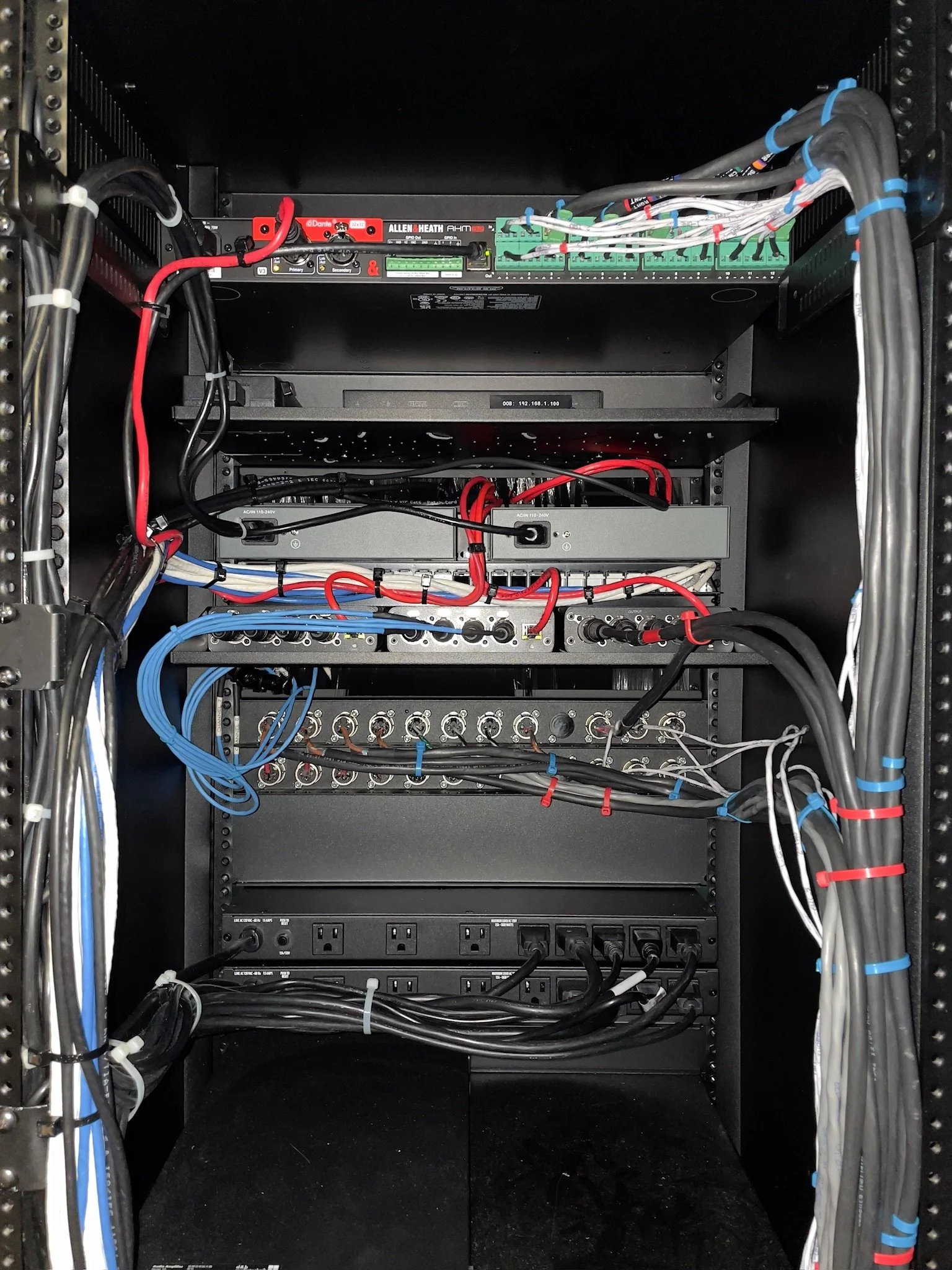

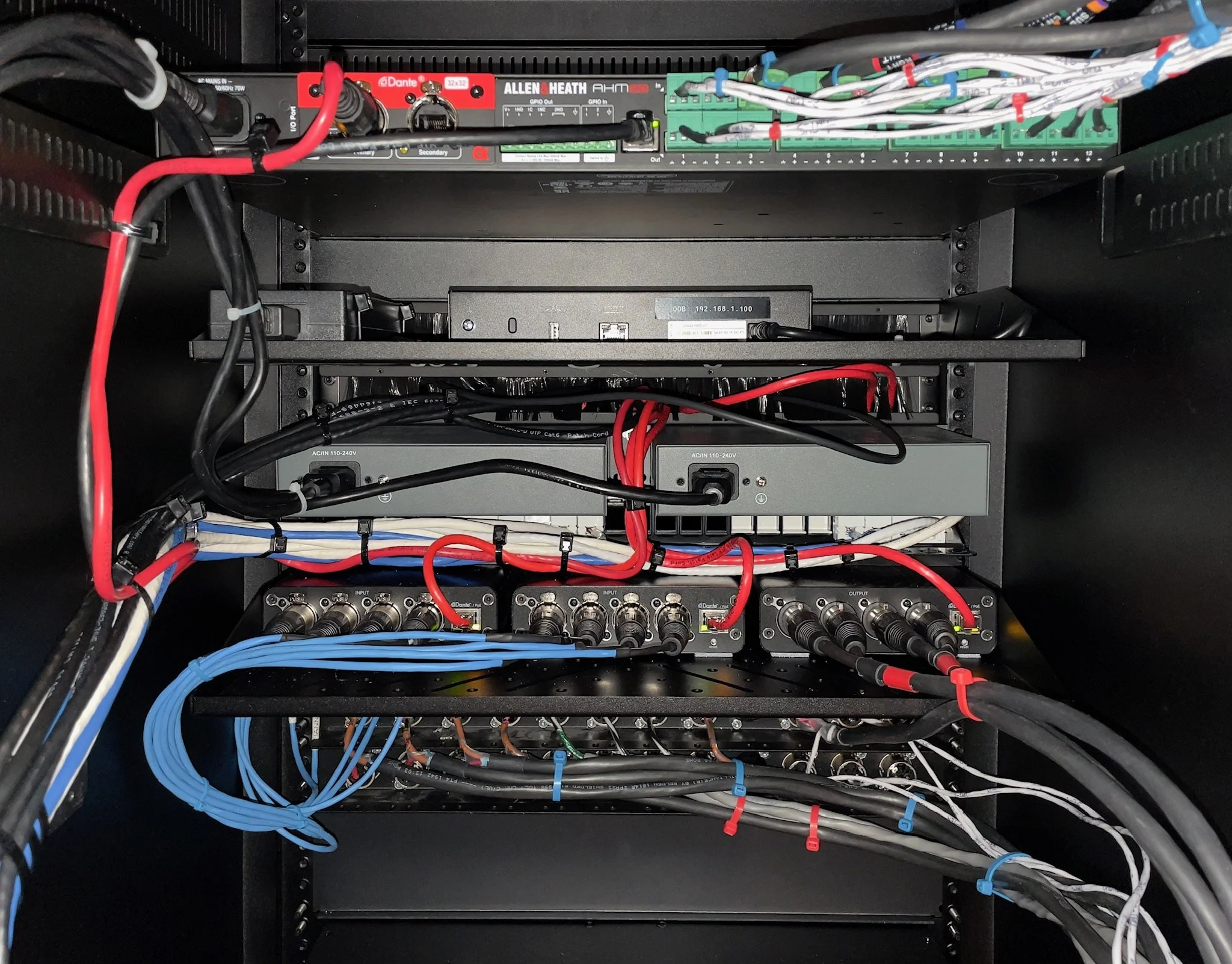

SYSTEM PROCESSOR - Allen and Heath AHM 32 + d &b Audiotechnik R1

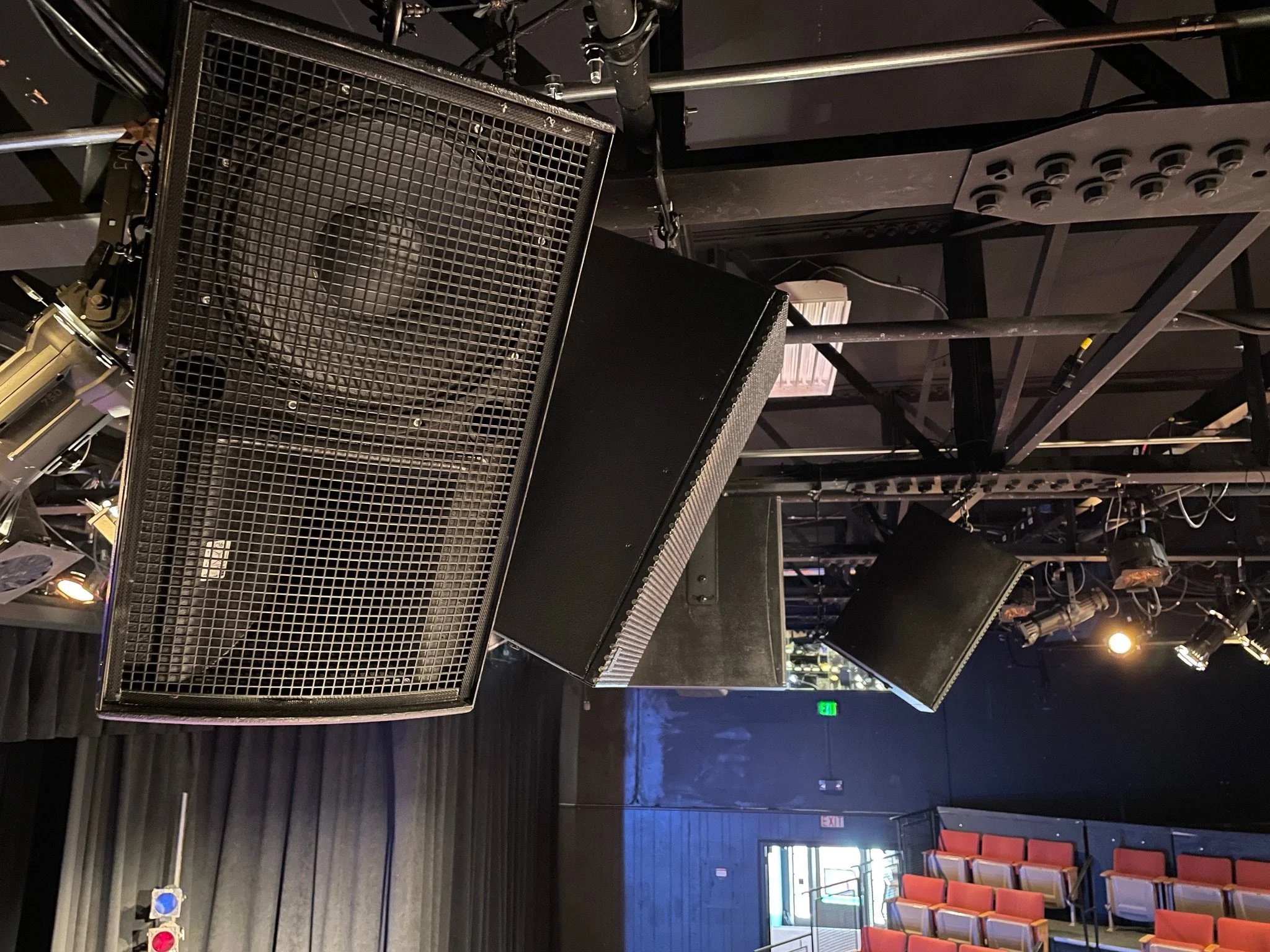

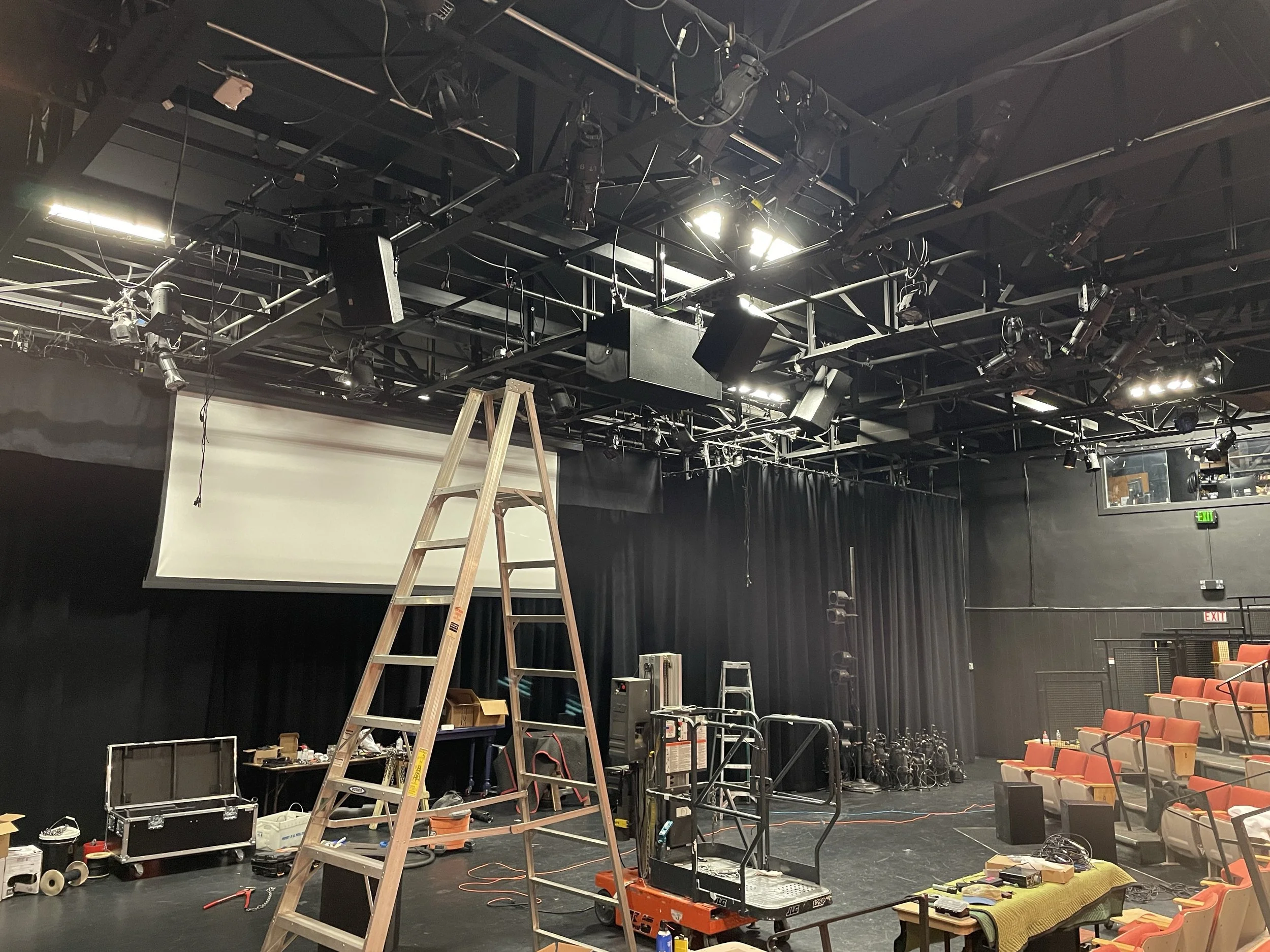

LOUDSPEAKERS

MAINS LR (2) - d &b Audiotechnik Qi7MAINS

CENTER (1) - d &b Audiotechnik Qi10

SIDES LR (2) - d &b Audiotechnik Ci60

SUBWOOFER (1) - d &b Audiotechnik 21s

SURROUNDS (3) - d &b Audiotechnik E3
